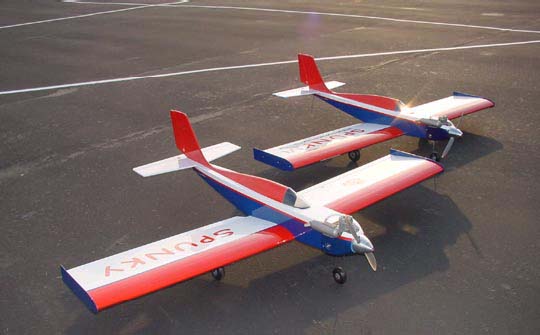

Spunky is an intermediate trainer/sport model.
Designed to take you to the next level. Capable of advanced maneuvers yet rock
stable. The perfect combination for those who have mastered the high wing
trainer. We recommend a good 25 size engine for the low wing beginner, if your
thumbs are a little more experienced, switch to a 40. Spunky is 100% laser cut
and builds FAST. You can build the fuselage and empennage in four hours, the
wing in about six. All wing and motor mount holes are laser cut for perfect
accuracy. You will appreciate the laser cut hinge slots that will give you a
perfect hinge line every time. Yes this is a kit but it will build in less time
then many ARFs and the quality will blow them away. This rugged design feature
a wide gear stance for those windy days, removable tip plate for added
protection and better handling. Top Notch materials, Top Notch engineering, of
course, its a Top Notch kit. |
Spunky Specs
|
Aircraft Name: Spunky
Designed by: John Valentine
Type Aircraft: Intermediate Trainer/Sport
Wingspan: 52
Wing Chord: 10.125
Total Wing Area: 528 Sq. In.
Wing Location: Bottom of Fuselage
Airfoil: Symmetrical
Wing Planform: Constant Chord
Dihedral, Each Tip: 7/8 (2Ί)
Overall Fuselage Length: 38-1/4
Radio Compartment Size: 9-7/8(L) x 3(W) x 3-5/8(D)
Stabilizer Span: 16-1/2
Stabilizer Chord (inc. elev.): 4-1/2 (Avg.)
Stabilizer Area: 75 Sq. In.
Stab Airfoil Section: Flat
Stabilizer Location: Fuselage top
Vertical Fin Height: 7
|
Vertical Fin Width (inc. Rud.):
7 (Avg.)
Rec. Engine Size: .2 - .4 Cu. In. Glow
Fuel Tank Size: 6 8 Oz.
Landing Gear: Tricycle
Rec. No. of Channels: 4
Control Functions: Ail. Elev. Rud. Throt.
C.G. From Leading Edge: 3
Elevator Throws: 3/8 Up, 3/8 Down
Aileron Throws: 3/8 Up, 3/8 Down
Rudder Throws: 1 1/4 R, 1 1/4 L
Right Thrust: 1 1/2Ί
Down Thrust: 0Ί
Basic Materials used in Construction
Fuselage-Lite Ply, Balsa
Wing-Balsa, Ply
Empennage-Balsa
Weight Ready to Fly- 4-5 Lbs.
Wing Loading-17-18 Os. Sq. Ft.
|
Spunky RC
kit.................................................................................139.95
Postage and handling $19.50 |
|
|
|
|
|
|
|
Top Notch Products
PO Box 1051
Goodlettsville, TN 37072
Ph 615-866-4327 |
|
|
|
|
|
|
|
